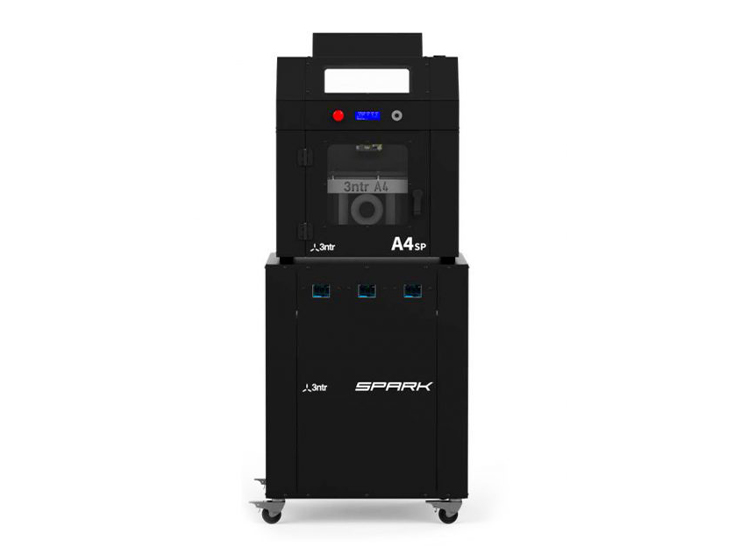

A4SP Smart Power 3D Printer
Extendability of materials via SPFU
Don’t limit yourself to just a few materials, with the Soft Polymer Feeder Unit, you can fully manage elastomers to create elastic models, O-rings or Gaskets already integrated in the geometry and moulded with rigid materials such as ASA, PACF, ABS one shot.
Liquid cooling
The temperature of the extruders is kept constant by a liquid cooling system for unrivalled thermal stability and efficiency.
3 nozzles
Multiple polymers in one printing process.
Carbon tray
Perfect and safe result. The carbon technology allows easy release of the material without damage and without the use of any chemicals.
Hot chamber
Get the most out of your products with a real heated chamber that enables speed, consistency and better tolerances in a single printing process. The thermal stability of the extruders guarantees unrivalled industrial performance.
24/7
Control your printing activities remotely, wherever you are. The printers are designed for maximum freedom of 24/7 management
| Print volume (max) | Nozzles / special nozzles | Temperature (max) nozzles / chamber | Mechanical accuracy XY | Layer thickness (min / max) | Dimensions and weight |
|---|---|---|---|---|---|
| 296x167x200 mm | 3 (2 x 1.75 mm + 1 x 2.85 mm) | 450°C / 90°C | 0,011 mm | 0,1 / 0,6 mm | 528(L)x515(P)x615(H) mm Weight: 43 Kg |
| Removable plates | Elastometer printing | Software and operating system | Network connection | Certifications | Peak current |
|---|---|---|---|---|---|
| Yes (carbon tray diamond) | Yes (optional) | SSI on Windows 32/64 | Print server | CE | 5 A / 230 V |
